Led Bulb Led G9 Ø30 x 32 120V/240V AC 3.2W 300Lm DIM Single-Sided LED Bulb
| Electrical Specifications | |
| Voltage | 110-130V AC / 200-240V AC |
| Frequency | 60Hz(120V) / 50Hz(230V) |
| Wattage | 3.2W |
| Power Factor | 0.9 |
| V/A Rating | N/A |
| Dimmable | Yes |
| CCT Changeable | No |
| Flicker | Flicker Free |
| EMC/FCC Certificated | Yes |
Light Specifications |
|
| Lumen | 300Lm |
| Efficacy | 95Lm/W |
| Correlated Color Temperature (CCT) | 2200K/2700K/3000K/4000K/5000K/6500K |
| Color Rendering Index (CRI) | 80 / 90 / 95 |
| SDCM | 6 / 4 |
| Beam Angle | 120° |
| Lifetime | 25000hrs |
General Specifications |
|
| Base | G9 |
| Shape | G9 Disc |
| Dimensions | Ø30 x 32mm |
| Weight | 3.2 |
| Material | Ceramic+PC |
| IP grade | 20 |
| Working Temperature | -20℃~+45℃ |

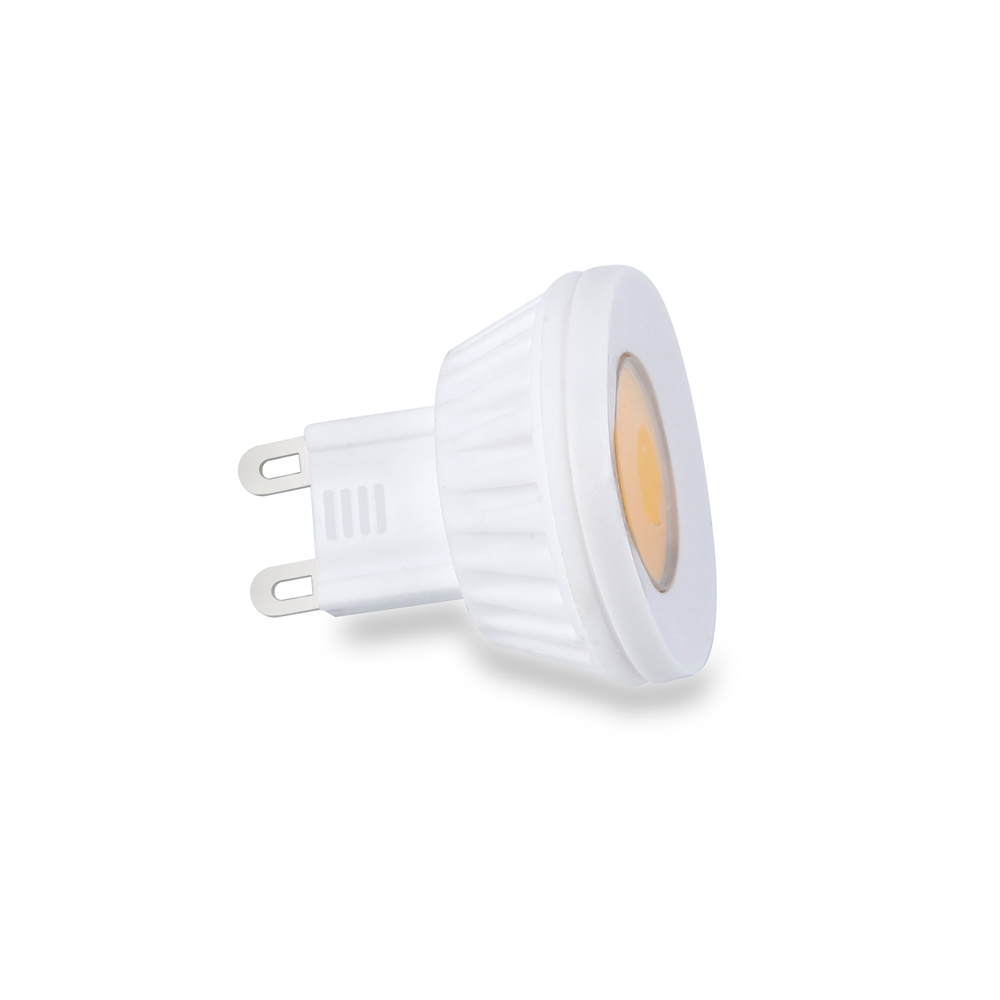

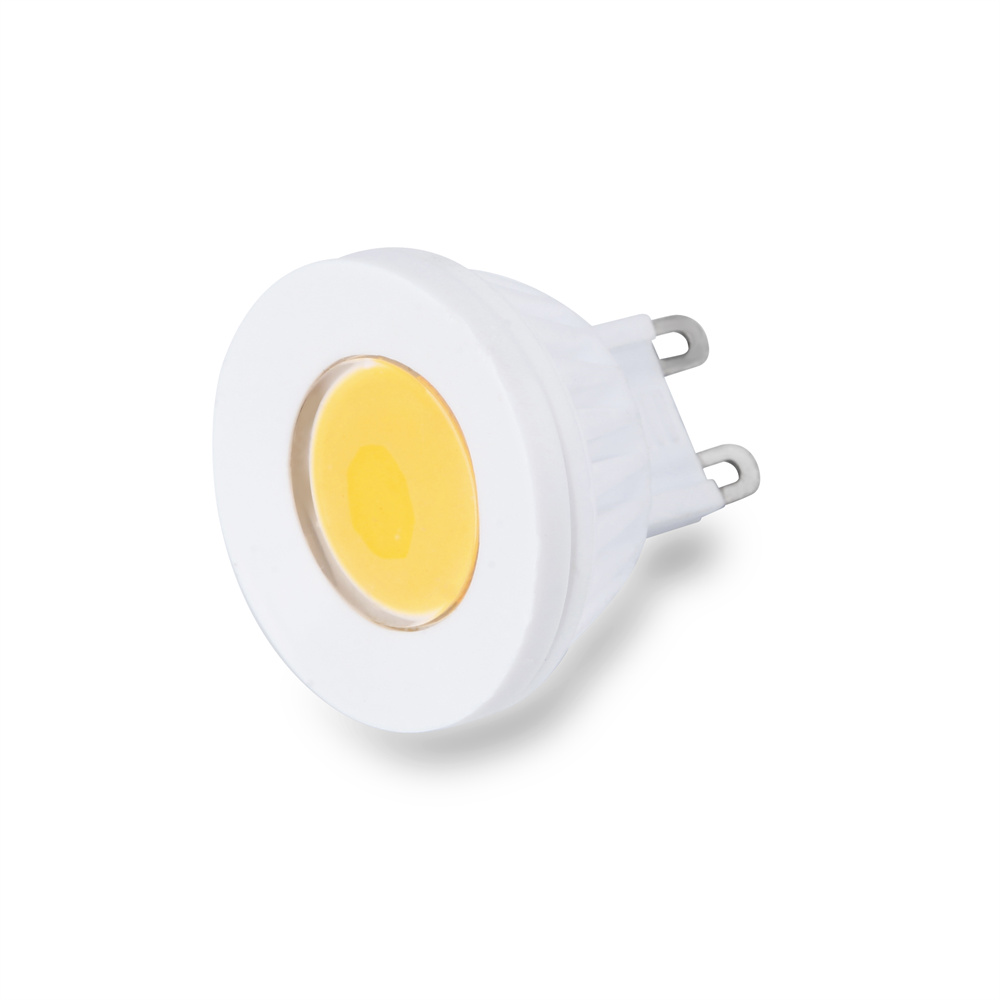

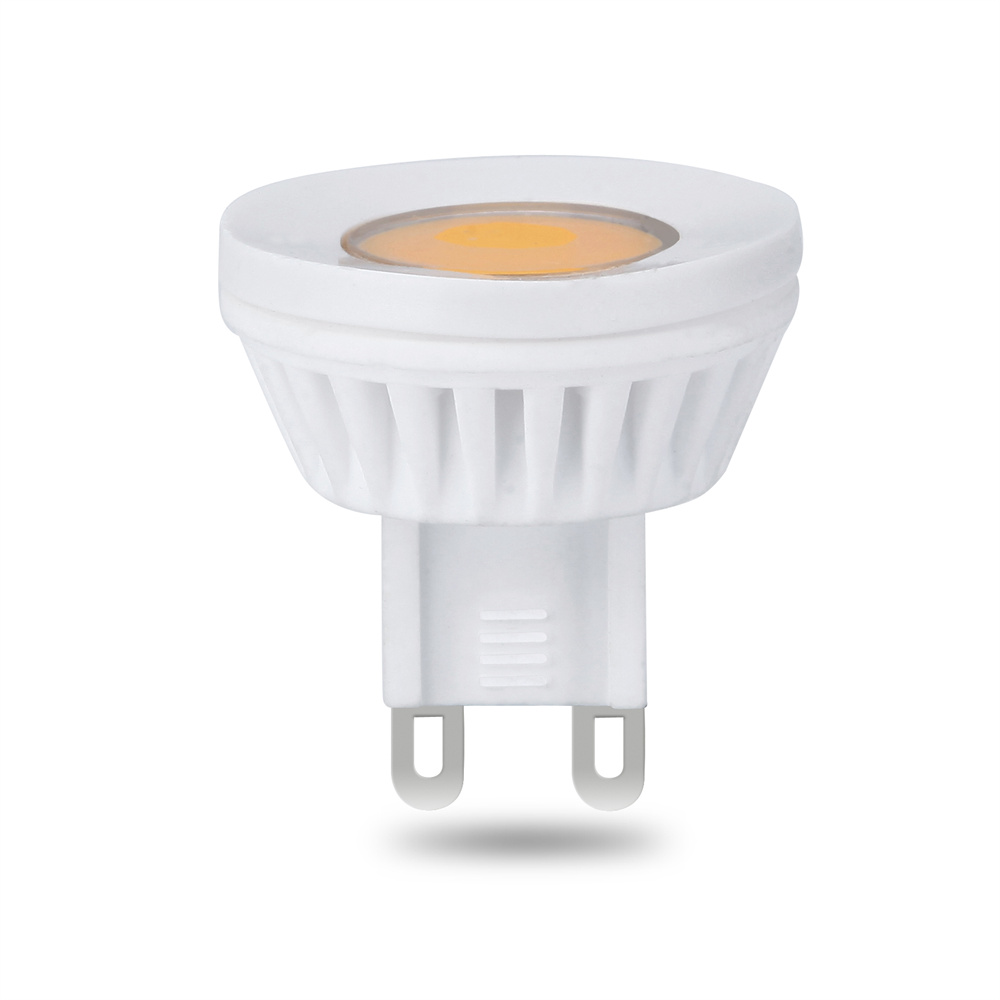

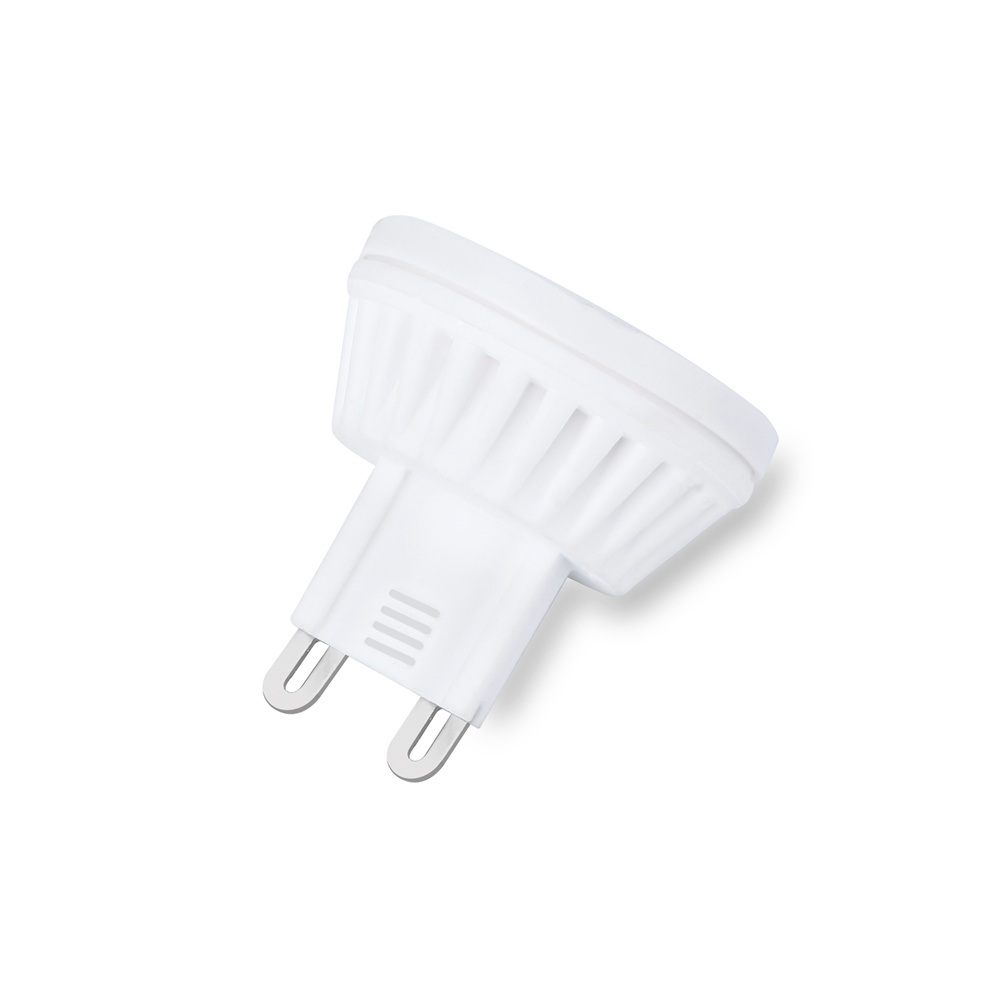

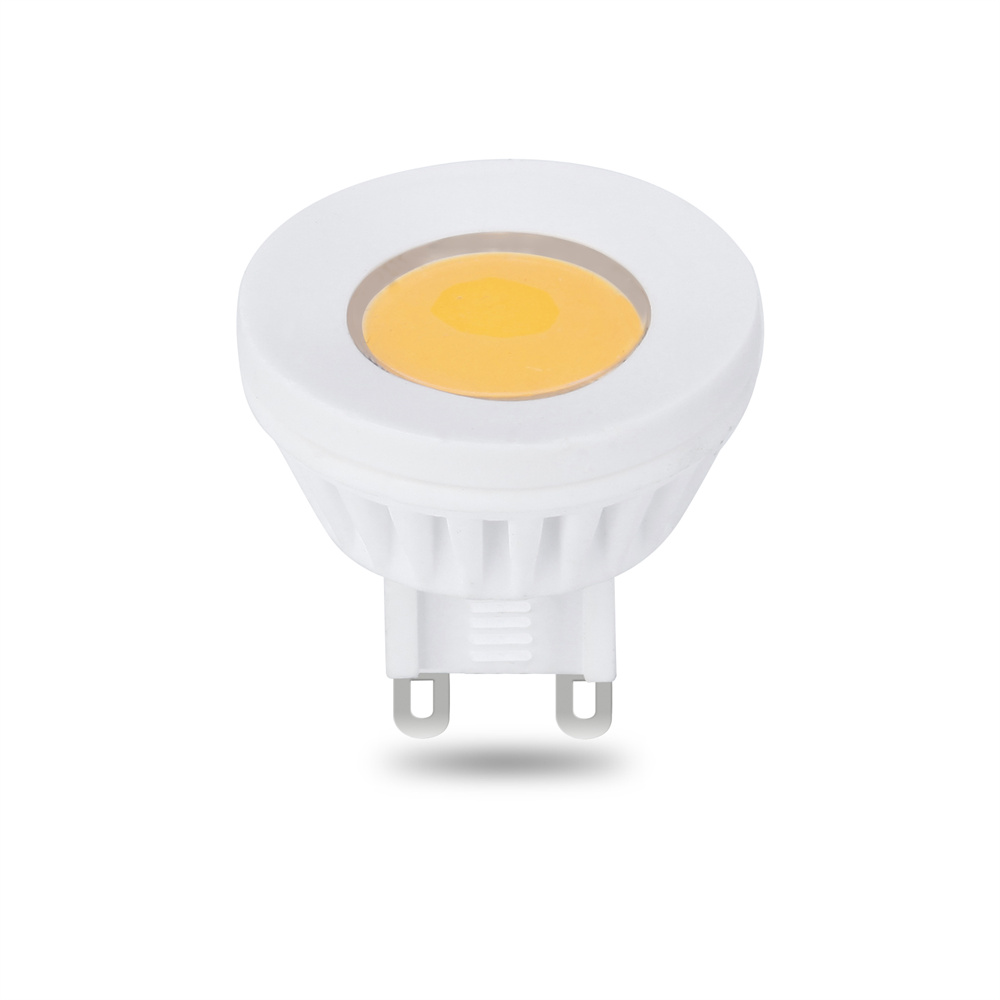

G9 Single-Sided LED Bulb – Targeted Lighting, Focused Brightness
Introducing the Single-Sided G9 LED Bulb (Model: FR-G9-3.5W-018DIM), designed to deliver precision lighting with maximum efficiency. With just 3.2W of power consumption, this bulb outputs a bright 300 lumens while concentrating all light into a 120° beam angle, ensuring targeted illumination exactly where you need it. Perfect for directional lighting applications, this bulb combines energy savings, superior performance, and visual comfort.
Key Features
Single-Sided Light Output: The specialized 120° beam angle dimmable LED G9 ensures that all light is directed where it’s needed, reducing wasted illumination and enhancing efficiency. Ideal for focused beam G9 LED light applications.
Energy-Efficient Performance: Consuming just 3.2W, this bulb achieves an impressive efficacy of 93.75lm/W, delivering bright, clear light while lowering energy costs.
Flicker-Free Precision Lighting: Advanced flicker-free technology provides stable, consistent light, creating a comfortable, eye-friendly environment for task lighting or display illumination.
Dimmable Functionality: Adjust the brightness seamlessly to suit different lighting needs, from focused, high-intensity light to subtle, ambient glow.
Versatile Color Temperatures: Choose from a full range of color temperatures—2200K, 2700K, 3000K, 4000K, 5000K, and 6500K—allowing you to match warm, neutral, or cool tones to your space and application.
Precision Lighting for Targeted Applications
The G9 Single-Sided LED Bulb features a disc shape and compact dimensions of Ø30 x 32mm, making it the ideal solution for fixtures that require directional G9 LED for displays and other precise lighting needs. Its focused beam is perfect for task lighting, retail displays, and accent lighting, providing bright, concentrated illumination exactly where you need it.
Perfect for Display Cabinets and Shelves: Highlight specific items with precision, ensuring maximum visibility without wasted light.
Workspaces and Task Lighting: Deliver concentrated light for areas requiring enhanced clarity, ideal for reading, working, or crafting.
Retail and Commercial Displays: Elevate product displays with sharp, focused illumination to draw attention and improve presentation.
Decorative Fixtures: Designed for applications where single-sided light output creates an elegant, directional glow in chandeliers or wall sconces.
Built for Long-Term Performance
Durable Design: Crafted from premium ceramic and PC materials, this bulb ensures superior heat dissipation for long-lasting performance.
Extended Lifespan: With up to 25,000 hours of operation, this focused beam G9 3.2W LED light minimizes maintenance and replacement costs.
Certified Quality: Backed by international safety and performance certifications, including EMC, LVD, New ErP, ETL, FCC, and JA8, guaranteeing reliability.
3-Year Warranty: Enjoy peace of mind with a comprehensive warranty ensuring long-term satisfaction.
Why Choose the G9 Single-Sided LED Bulb?
The G9 Single-Sided LED Bulb is the ultimate solution for targeted and directional lighting. By concentrating all effective light into a 120° beam angle, this bulb eliminates waste, improves energy efficiency, and delivers focused illumination where it matters most. Whether for display cabinets, task lighting, or decorative fixtures, its combination of dimmable functionality, flicker-free precision lighting, and high efficiency makes it the ideal upgrade for your space.
Perfect Applications
Accent lighting for display cabinets, shelves, and showcases
Task lighting for workspaces requiring precise illumination
Spotlighting in retail stores and commercial displays
Decorative fixtures needing single-sided, directional light
